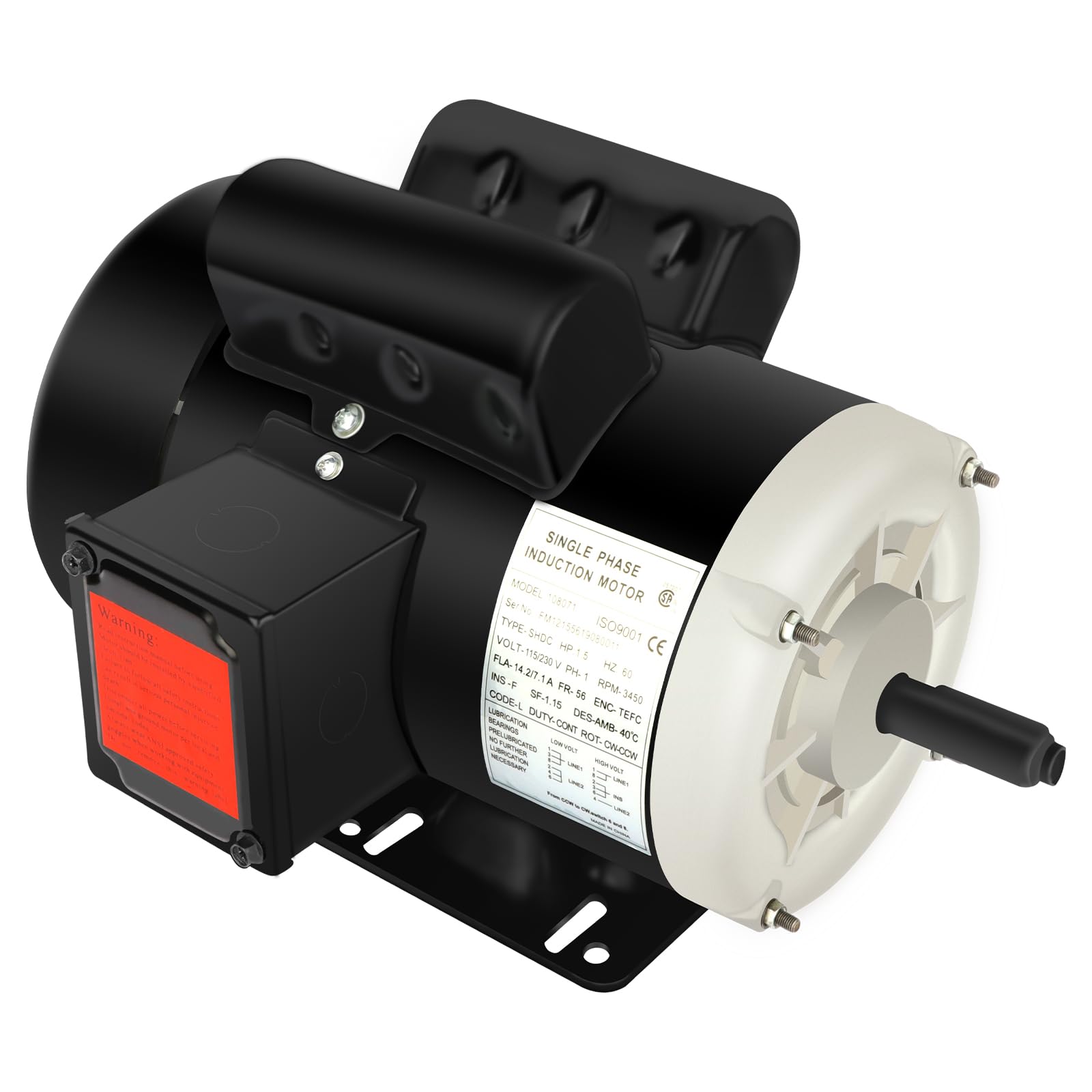

1.5HP Electric Motor, General Purpose Single Phase Motor 3450RPM 115/230V 56 Frame 5/8“ Shaft Diameter CW/CCW TEFC 2Pole

Additional Details from the Manufacturer

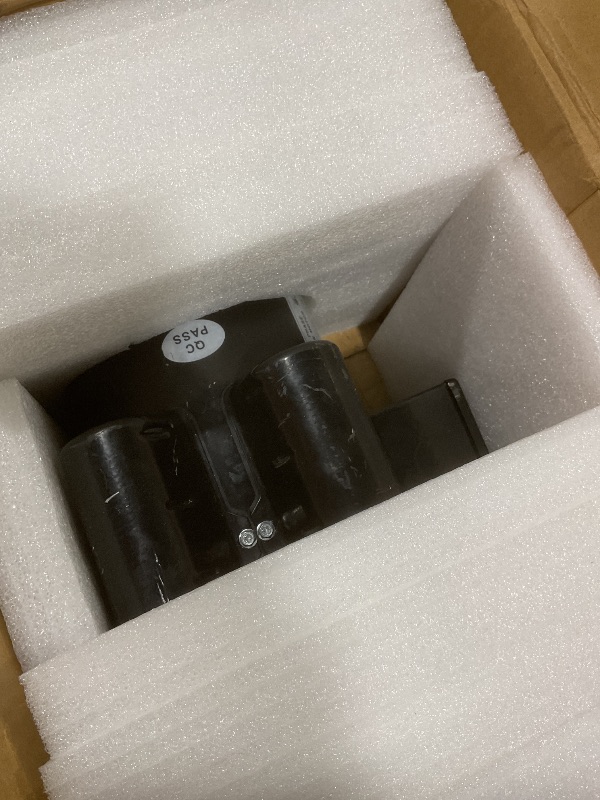

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• MOTOR INFORMATION: IP - 55, HZ - 60HZ, 14.2A / 7.1A, 115/230V, INS - F, Service Factor-1.15.
• FULLY ENCLOSED FAN: Even in harsh environments, a large fan at one end cools the motor during hours of operation to reduce energy costs and operating temperatures for you to save energy.
• ELECTRIC MOTOR FRAME TYPE: 56 frame,Shaft diameter - 5/8",Shaft length - 1.88". Rolled steel shell, safe and durable, long service life.
• MOTOR ROTATION DIRECTION: The 3450 rpm single phase motor rotation is reversible for CW/CCW, following the provided wiring diagram for easier operation.
• SPECIAL DESIGN: 1.5HP electric motor is general purpose motor that can be used used in mechanical equipment, pumps, fans, reducers, air compressors and other equipment and is CSA certified. Rolled steel housing, fast heat dissipation, compatible with keying shaft, long-term use.
