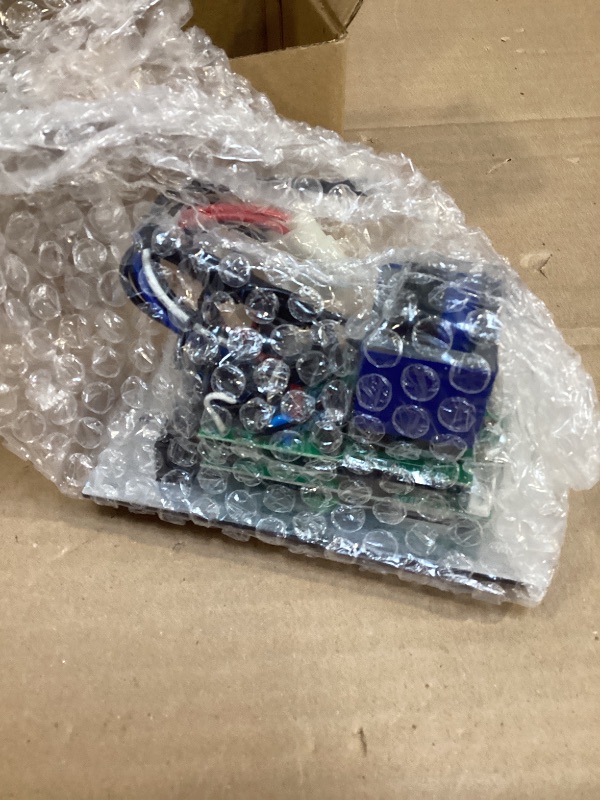

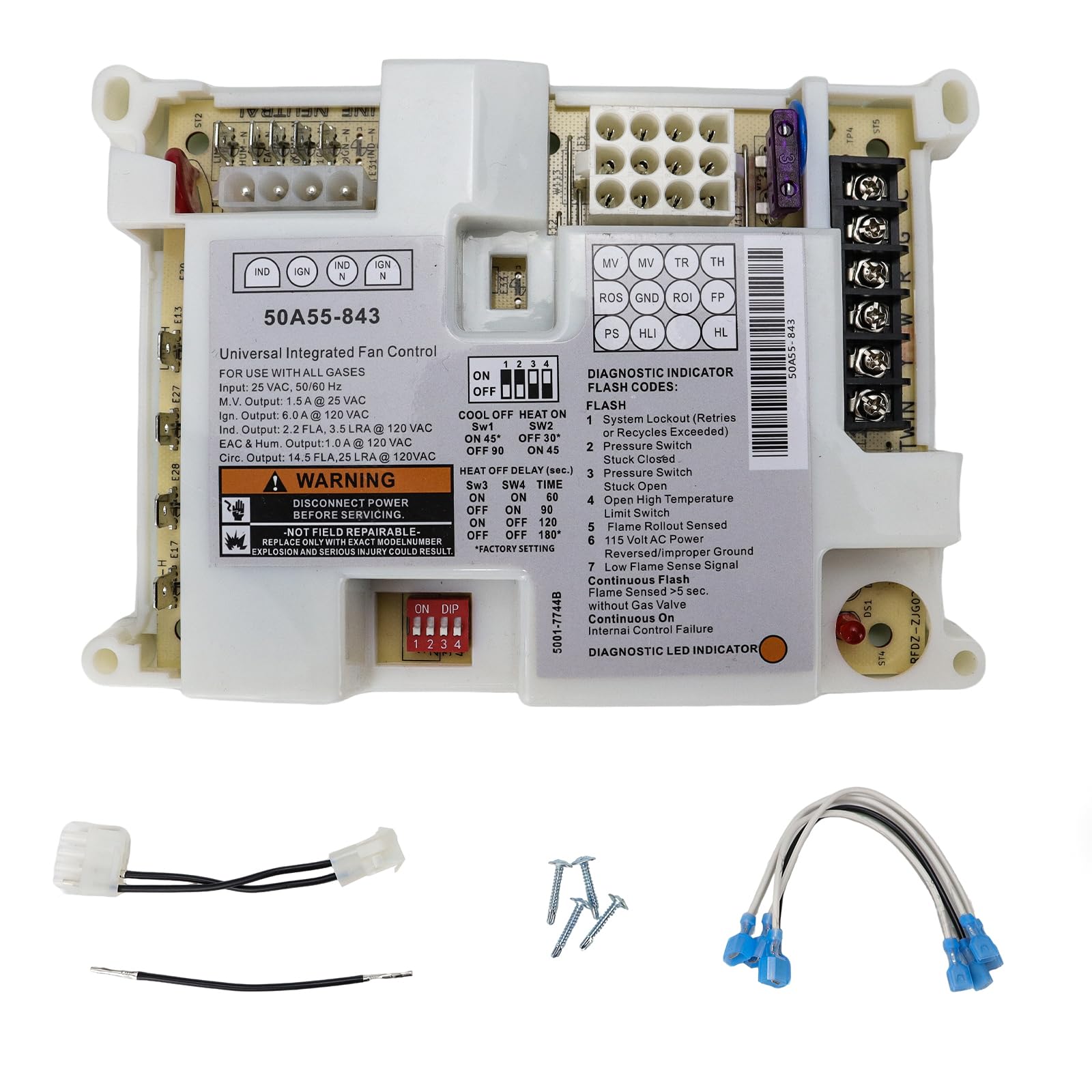

50A55-843 Furnace Control Board Furnace compatible with White-Rodgers Furnace Ignition Module Control Board 50A55-843

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• OEM Part Number: 50A55-843.
• Compatibility: The 50A55-843 Furnace Control Board Compatible with White-Rodgers.
• Input Voltage: 25 VAC 50/60 Hz; Max. Input Current @ 25 VAC: 0.45 amp; Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf; Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive); Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC; Circulator Relay: 14.5 FLA–25.0 LRA @ 120 VAC; Operating Temperature Range: -40°to 175°F (-40°to 80°C); Humidity Range: 5% to 93% relative humidity (non-condensing).
• Tip: Please make sure to connect the 'ROS' and 'ROI' with the black jumper wire provided in the product interfaces as shown in the second video on the main page. This will ensure the proper operation of the product.
• High Quality: The 50A55-843 specialized material integrated control board is manufactured in accordance with stringent quality standards to ensure durability and long-term operational stability.
• Function: The 50A55-843 Furnace Control Board ensures precise gas ignition timing, immediate detection of ignition failures, and safe system shutdown under abnormal conditions, thereby enhancing furnace longevity, operational safety, and energy efficiency.
• Notice: Make sure getting the wires on the correct terminals.
