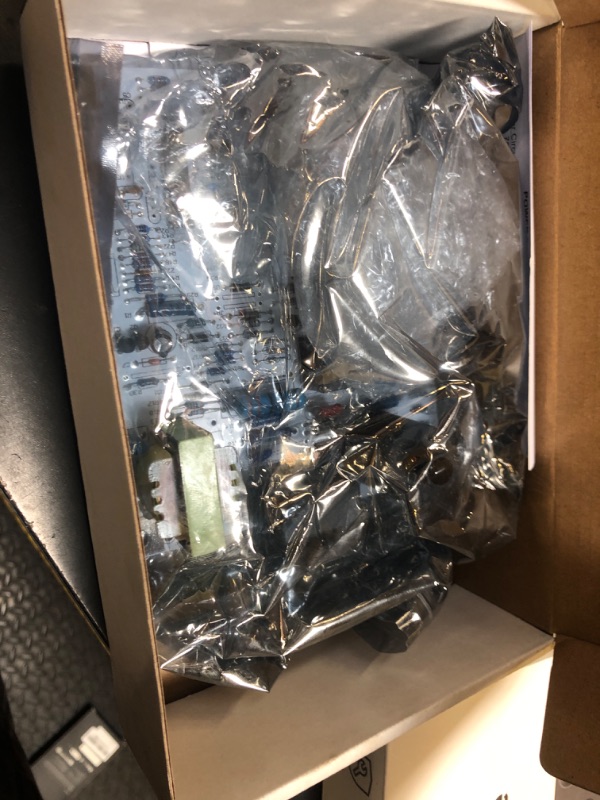

62-23599-05 Integrated Furnace Control, Universal Furance Control Board Replace for 62-23599-01,62-23599-02, 62-23599-03, 62-23599-04

Features

• 62-23599-05 Integrated Furnace Control Board (IFC). Used on Models: UKKA, RKMA, RRNA-A, URKA-A, URMA-A, RQPW-B, RRNA-B, RKKL-B, RKKN-B, RKNA, RKNL-A, RKNN-A, RGEA13, RGEA15, RGEAZR, and others. REPLACES: 62-23599-04, 62-23599-03, 62-23599-01, 62-23599-02.
• 62-23599-05 Integrated Furnace Control Board ensures reliable operation and efficient performance for air conditioners and packaged units in HVAC systems. 62-23599-05 integrated furnace control boards ensure optimal performance and peace of mind, delivering dependable operation that aligns with your heating system's specifications.
• 62-23599-05 control board integrates all major functions of your furnace, including temperature regulation, fan control, and diagnostic reporting. It helps improve energy efficiency and prolong the lifespan of your furnace components.
• Inputs: Line voltage: 208-230 VAC, 50/60 Hz, Control voltage: 18-30 VAC, 50/60 Hz, System switches: Vent pressure, limit and MRLC (Manual Reset Limit Control). Outputs: Heat N.C.: 16FLA/30 LRA @ 277 VAC, 30K @ 85°C, Cool N.O.: 15FLA/36 LRA @ 277 VAC, 100K @ 85°C, Inducer: 9.8FLA/58.8LRA, 1/2HP @ 120 VAC, 6K @ 75°C, Gas valve: 2.3 A PILOT DUTY @ 240 VAC, 6K @ 75°C.
• Note: to save yourself some hassle, please take a picture of the old one before removing it.Make sure getting the wires on the correct terminals. Please feel free to contact us if you have any questions about our products, your satisfaction would be our greatest motivation.
