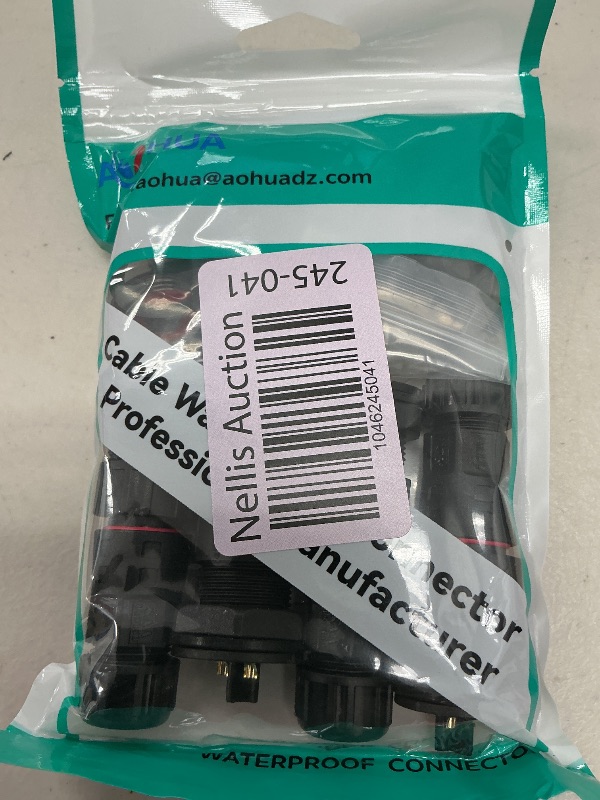

AOHUA M20 Waterproof Connector IP68 Outdoor Electrical Plug for 2 Or 3-pin Cables Ø 5.0-9.5mm UL Certification

M20 wire to front female panel connector technical specifications: * Certification: UL TUV CE IP67 ROHS certification * Packing: 4 set pack ( Comes with 2 sets of different sized grommets to accommodate different size wires. ) * Cable Range:5.0-7.5mm/7.5-9.5mm ( If you use a cable that is too thin, then the seal won't even cover IP67!) * Waterproof rating: IP67 advanced waterproof connector * Rated voltage: ≤ 300V * Rated current: ≤ 15A * Working Temperature: -40°C~105°C * Material: plastic (nylon), seal ring (silicon) * Colour: Black * Connection method: The soldering plug is easy to install, male and female can be separated and easy to install. * Scope of application: connectors are suitable for quick connection of garden and outdoor displays, floor heating, beacons, cruise ships, LED billboards, LED tunnel lights, LED street lights, external wiring, etc. * USAGE: Twist the port of the waterproof connector, insert the wire directly, soldering with electric soldering iron to secure the wire, and then close the cap. Please make sure to connect the wire correctly. * Note: when finished, check that all nuts are tight. Inserted to panel from inside and screwed from outside. （Front Panel ）Dust cap is without a certificate.
