Air Mini 100-240V Split Condensate Pump - Self-Priming, Ultra-Thin Silent Design (<19dB) for HVAC, Air Conditioners, Dehumidifiers | Super Mini Wall-Mounted with Anti-Siphon & Auto-Drain

Features

• 【Purchasing instructions】Condensate pump for mini split Ultra-thin shape, with A separate pump body and reservoir, overall suspension loop, independent water storage, automatic drainage, sound <19dB(A). Mini split condensate pump for air conditioning, HVAC, dehumidifier and other equipment need automatic drainage pump professional design.

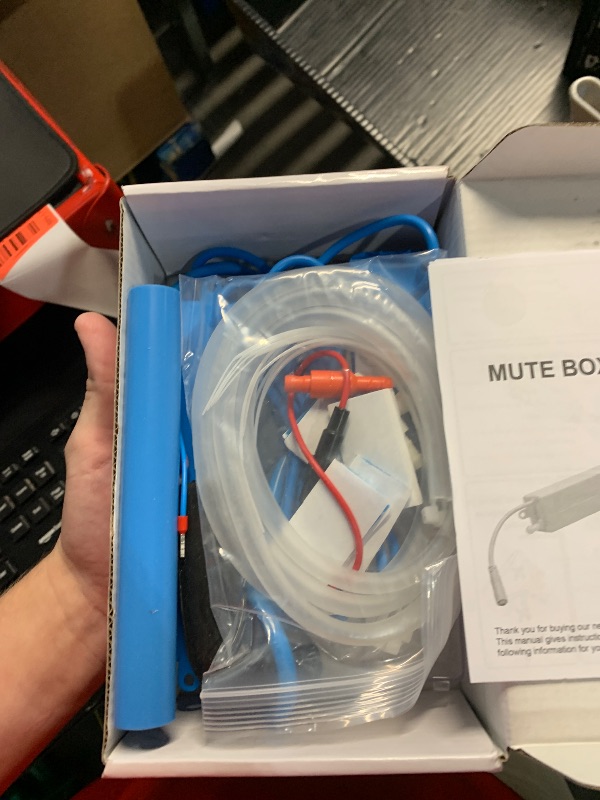

• 【Complete accessories】Mini split condensate pump includes assembled mute box*1, assembled inline reservoir, 1.5m(59.05in) length of 6mm(0.24in) i/d vinyl tube*1, inlet tube*1, self adhesive velcro strips*4, anti-siphon valve*1, check valve*1, power cable*1, 200mm x 5mm(7.87in*0.2in) cable ties*10.
• 【Parameter setting】Power supply ：100-240V AC, 50/60Hz ＜4W; Max.flow：22L/h @ 0 head; Sound level：<19dB(A) @ 1m(39.37in); Max.recommended head：20m(787.4in); Max.suction lift：2m(78.74in); Max.unit output: 28kw / 95550 Btu/h; Safety switch：3A Normally closed; Max.water temperature：70ºC; Discharge tube：6mmID; LxWxH:185mmx36mmx34mm(7.28in*1.42in*1.34in)
• 【Remote application】Condensate pump was installed inside the pipe jacket or evaporator, and the pump body was connected with the liquid reservoir by ethylene pipe and cable.Induced drainage process by floating float in tank.Equipped with professional anti-siphon device and manual.
• 【After-sales service】Ac condensate pump uses high-quality materials and is a fully enclosed electronic device that has been professionally evaluated by a professional manufacturer before leaving the factory, making it quiet and environmentally friendly. Installation has detailed professional installation instructions, you can tell me directly when you encounter problems, give you a professional and satisfactory answer, while supporting free return and exchange, your satisfaction is our pursuit.
