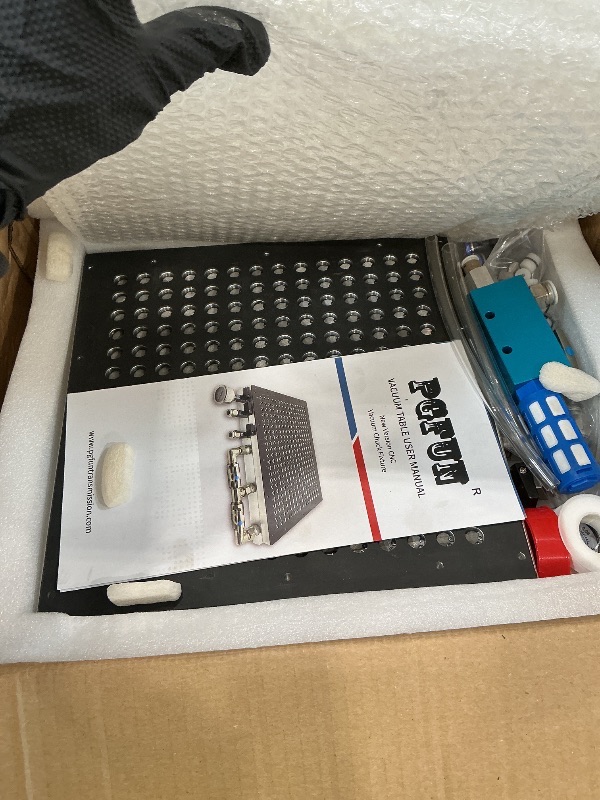

PGFUN CNC Vacuum Chuck Fixture Plate Workpiece Clamping Table Vacuum Workholding System for Machining Center, Lathe, Milling, Engraving Machines (300 x 300mm)
Time Left
-
CURRENT PRICE
$26
How max bids work
Enter the most you'd pay. We bid for you, just enough to keep you in the lead, up to your max.
Description
PGFUN Upgraded CNC Vacuum Chuck Fixture Plate Workpiece Clamping Table Vacuum Workholding System for Machining Center, Lathe, Milling, Engraving Machines Specifications: Table size: 300 x 300 mm; Material: 6061-T6 aluminum alloy; Vacuum Generator Model: CV-25HS; Negative Pressure Port Size: 12 mm; Positive Pressure Port Size: 8 mm; Vacuum Generator Supply Air Port: 8 mm; Vacuum Generator Vacuum Port: 12 mm; Tips: You may prepare air tubing with outer diameters of 12 mm and 8 mm in advance, or 1/2" and 3/8" /1/4" outer diameter hoses. Attentions: 1. Recommended Minimum vacuum pressure required: -80 kPa (-85 kPa for strong force manufacturing), an insufficient vacuum pressure will result in weak suction. The recommended workpiece size for this vacuum table is: 100mm x 100mm(min), and the height 3-25mm, for higher workpiece manufacturing, the assistant fixture tool is needed to avoid damage to machines and workpieces due to flyout. 2. It is suitable for a variety of material workpieces, like stainless steel, aluminum alloy, copper, PVC, etc., but processing workpieces made of bakelite, fiberglass, graphite, or similar materials is not recommended, as these materials may generate fine dust that can clog the suction holes. 3. Ensure the back surface of the workpiece is flat (flatness ≤ 0.2mm) and non-deformable; otherwise, stable adsorption cannot be achieved. 4. Since there is only one air chamber inside the vacuum chuck without internal separation, be sure to apply PTFE tape to the pipe threads when replacing air fittings to prevent air leaks, ensuring a strong and stable vacuum supply within the chamber. 5. You can contact us to obtain the relevant documents for manufacturing metal protective plates or replacing silicone protective pads. When replacing the silicone pad on your own, ensure that a hard-surface silicone pad is used. Soft or flexible silicone pads cannot guarantee the flatness of the chuck surface and tend to cause air leakage during machining, resulting in insufficient holding force.
Item Details
Seller
Nellis Auction
Pickup Location
6520 Westwind Rd, Ste 100
Las Vegas, NV, 89118
Quality
Auction closes
-Estimated Retail Price
$599.00
Buyers Premium
15%
Inventory Number
1091887289
Found in
Additional Details from the Manufacturer
This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing
brand
PGFUNdimensions
Item: 11.8 × 11.8 × 2.6 in · Package: 23.15 lbMore features
- Upgraded Rapid Vacuum Fixture Table: Unlike traditional vacuum fixture plates, this new vacuum fixture table eliminates the time-consuming steps of assembling and installing sealing strips, as well as applying adhesive. It enables fast clamping and quick suction.
- Practical Vacuum Chuck Fixture Table: this vacuum fixture table can perform a variety of CNC operations, like profile milling, face milling, through-milling, etc., and it is equipped with a replaceable silicone pad to protect the surface of the vacuum table from damage when manufacturing, especially for through-milling operations.
- More Flexible Tool for CNC Manufacturing: workpieces (flatness ≤ 0.2 mm at the bottom) can be absorbed at any position. When processing multiple workpieces, it significantly reduces time spent on layout design, repeated clamping, etc., which greatly boosting the efficiency of CNC workpiece processing.
- Independent Suction Holes for Stable Adsorption: each suction hole operates independently without mutual interference. If there is no workpiece in a specific area, or if a suction hole is punctured or damaged, the affected hole(s) will automatically close, without compromising the suction effect of the entire fixture table.
- Note: This CNC Vacuum Chuck Fixture Plate Requires Strong and Stable Vacuum Pressure, If you do not know how to install and use this vacuum table, for stable and security manufacturing, please contact us first.
