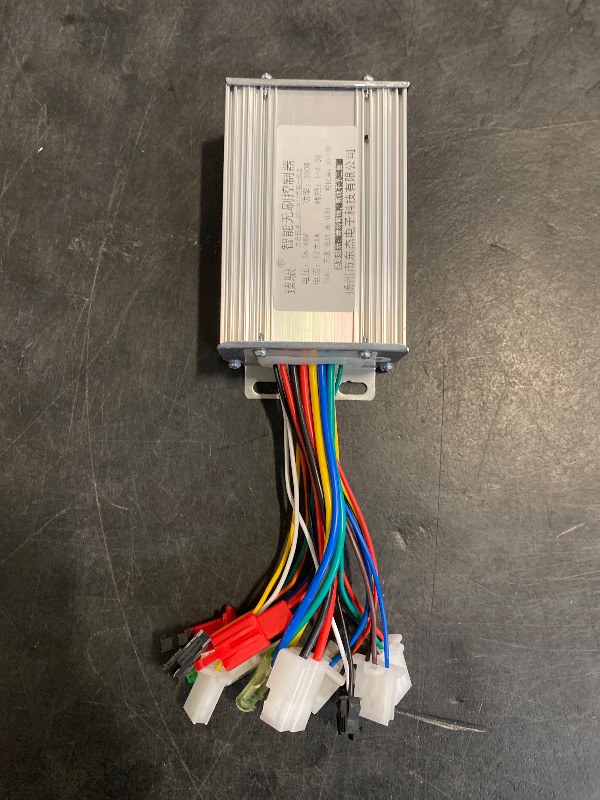

yuandai 36V-48V 350W Brushless DC Motor Controller for Electric Bicycle E-Bike Scooter

The product wiring is complex. If the buyer cannot understand the product details page here, please contact us via email, and our customer service can help you as much as possible. 36V-48V 350W controller can work with hall sensor/hall sensorless Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W Limit Current: 17A 1.pointer meter line 2. motor line 3.3-speed line 4.Anti-theft alarm line 5.self-learning line 6.hall line 7.throttle line 8.low brake 9.Anti-theft power line 10.Cruise speed line 11.battery（2 red wires is battery +，black is battery -） 12.high brake how to connect？ 1.connect the motor line (color to color，must connect） 2. connect the battery line(2 red wires is connect to battery + , black connect to battery-，these wires must need connect) 3. connect the controller throttle line（color to color connect） 4. connect the hall line(if motor without hall line, don’t need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed.
